Description

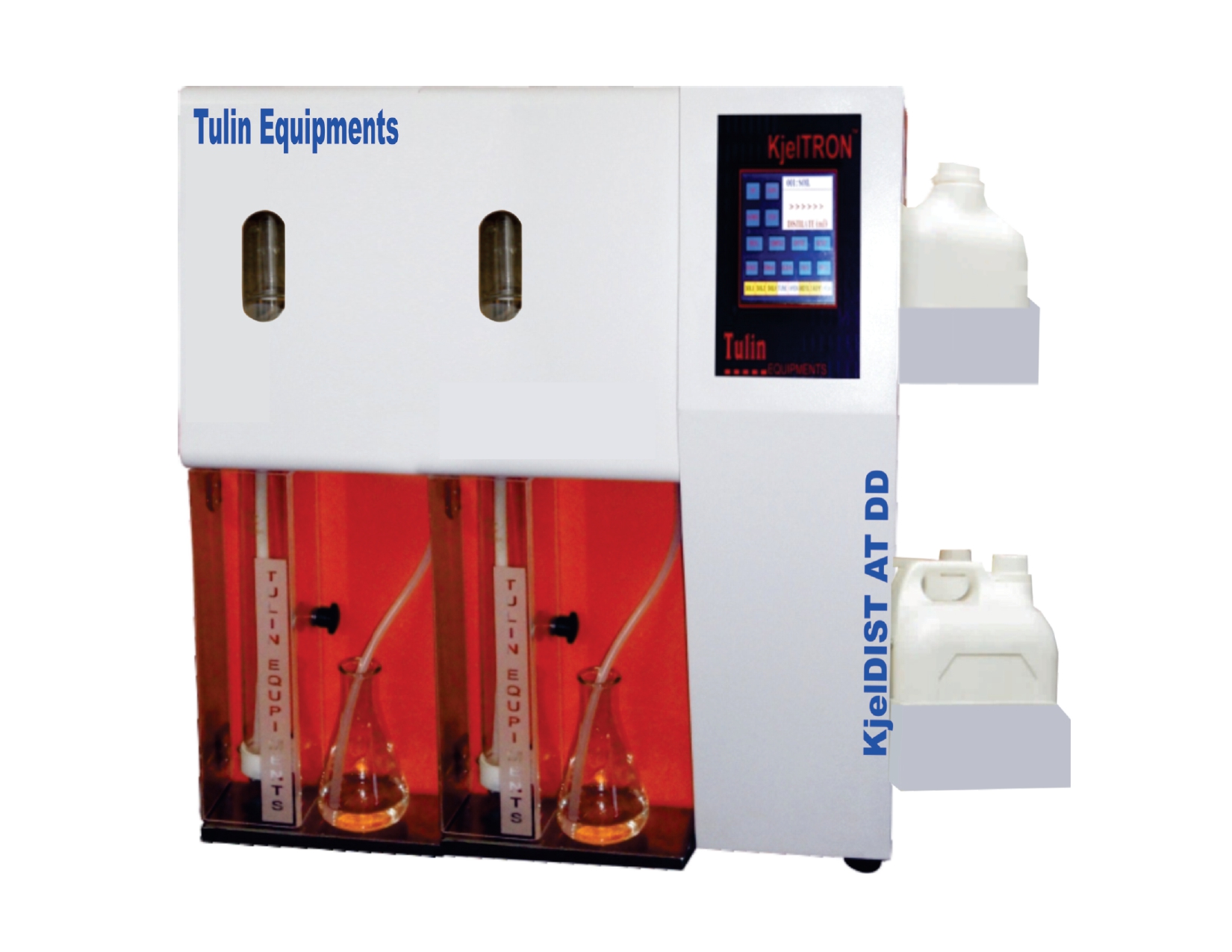

Tulin- Model: KjelDIST AT DD

Model KjelDIST AT DD :Advanced Fully Automatic Nitrogen PC Compatible Dual Distillation System (ISO 9001: 2015 & CE Certified) (The Rapid Fully Auto Run Completely Microprocessor Programmable Based PC Compatible Auto Sequence Operation Color Touch Screen DUAL TFT Touch Screen LCD Display Distillation System with 100 Programmable User In Built Software)color Touch Screen Display high resolution TFT LCD Display Large 7” inch Touch Screen.

No. of Samples: Two at a Time with display Parameters.

Mode of Operation: Single /Both Simultaneously.

Electrical Requirement: 220-230V single phase 50Hz A.C.

Application

Suitable for All type of Sample Like Solid & Liquid Milk & Dairy Products, Feed, Food & Health Supplements, Bio Material, Soils, Plant, Water, Pesticides, Fertilizers, Animal Feeds, Fish & Many More

User Storage Auto Sequence Programme Steps

• Auto Addition of Boric acid (Receiver Solution)
• Auto Sample Selection Library
• Auto Addition of Sample Dilution
• Auto Duration of React time
• Auto Addition of KMNO4 (Available Nitrogen in Soil)
• Auto Duration for delay time
• Auto Addition of NaOH (Alkali)
• Auto Duration of Neutralization
• Auto Addition of water Steam injection
• Auto Distillate control with adjustable volume Steps
• Auto Duration of Sample Settle Time
• Auto Duration of Residue Removal
• Auto Process over Intimation with alarm with inbuilt Delay Time Features
• Auto alarm for Sequence steps
• Auto Titration Connectivity feature for Future Upgradation
• Auto Calculation of Results

Superior Features

• Large color touch screen panel display have two columns of Dual Distillation Parameters in single Touch screen display with 2 split screen for sample 1& sample 2 simultanecusly, Both sample run Parallelly with Single Power Socket.

• Independent stainless steel non corrosive steam generator, Expansion vessel and water condenser with safety Sensor for each Column of Dual Distillation.

• Auto calculation of results on feeding of titre value with built in formula includes Preprogrammed data of all parameters including program numbers, Available Nitrogen in Soil, Sample ID & Total Nitrogen by direct titration and back titration method, Protein percentage by direct titration method, Protein percentage by back titration method, Ammonical Nitrogen, Formula customizable ,All parameters of both samples can be viewed directly in TFT touch screen Display.

• Flow Diagram Display to show live auto sequencing steps at each stage of Process, Data table export to excel.

• Facility for auto distillate control with adjustable sensor determination of available nitrogen with digital display of set volume.

• Auto sensing of “NO WATER” condition in condenser & steam generator with alarm & signal to alert users

• Enables Automatic monitoring and measuring of high temperature in distillate with sensor for auto warning signal and safety alarm alert Continuously measured temperature is displayed digitally. Suction module of waste residue door mounted for easy serviceability.

• Auto reagent Level Sensor with Alarm for Reagents (2ltr) tanks to be wall mounted for easy handling and user’s visibility.

• Transparent view window to watch the distillation process & splash head.

• The control panel unit along with inbuilt temperature controller, timer, motherboard and SMPS isolated in separate Control Tower and compartments to protect electronics from wet chemistry & acid/ alkali process area for longevity and safety of all electronic components, with Separate Access Door for main unit & Electronic Control Tower Unit. Non Corrosive robust metallic condenser

• Machine Management software have provision for External Keyboard, Wifi Compatibility, Android Mobile Compatibility.

• Incorporate Facility to copy data in a pen Drive/ Memory Stick of all run Programs of analysis.

• It Incorporates wireless Remote mouse to control & set all Parameters in the Touch Screen, without any Intermediate of PC Laptop

• IP address of user & device (Mobile, Laptop or PC) name displayed in the login page Automatically While on connect.

• Remote control Module for wireless data monitoring, control & data transfer through wireless to PC/Laptop with 5-10 feet.

• Entire display screen of Controller should appear wirelessly in the PC / Laptop, monitor & Control From Work Table distance of 5-10 feet.

• Auto Monitoring of valves in Operation, Automatic running count of individual valves in operation like Dilution valve, vent valves, condensor valve, refilling valve, steam valve and Residue valve with real time digital display in the touch screen panel.

• 4 USB ports One for wireless mouse connectivity, 2nd port for wireless keyboard connectivity, 3rd port for USB pen drive to copy stored data’s & 4^th port for Ethernet connectivity.

• Nitrogen level: 0.1 to 200 mg Nitrogen (Min / Max Detection Limit).Nitrogen Reproducibility: ± 0.1% RSD ,Nitrogen Recovery : > 99.5%.

• Facility to record and store statistical data of Total running cycle of Individual pumps, Total running time of pumps, No. of Operation of each Pump, Total number of distillation completed with LCD display of all parameters.

Safety Features

• Auto tube insert error indication
• Auto deactivation of system on error diagnosis
• Interlocked safety door, Auto Door Closer Sensor
• Automatic door open warning indication
• Auto online water saving mechanism
• Automatic Excess pressure release safety valve
