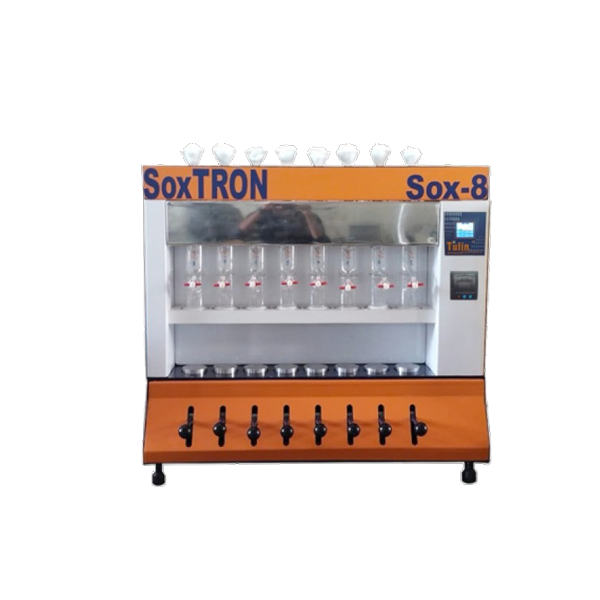

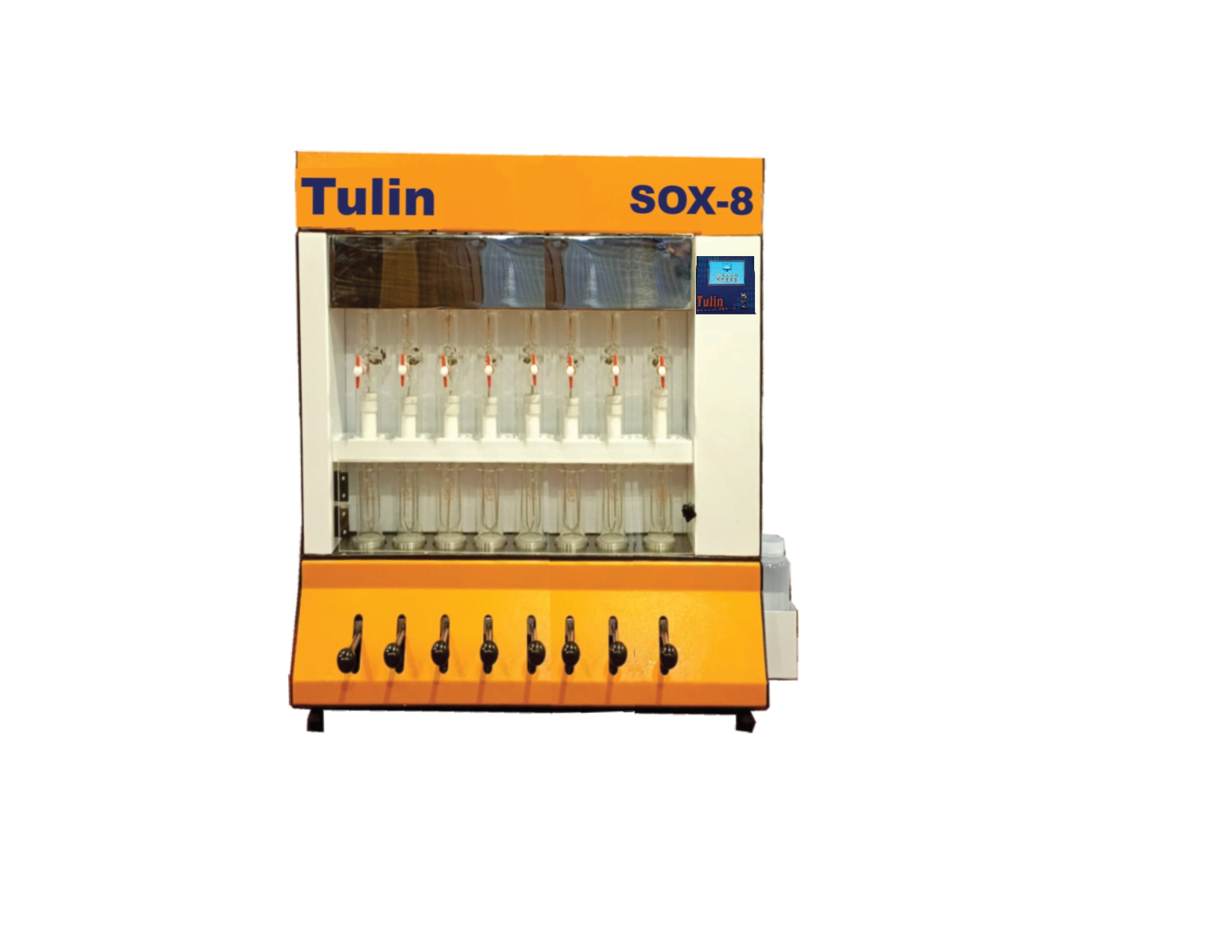

Description

Superior Features

• Touch Screen TFT Graphical Display System read out for Temperature & Time, Date, Real Time Clock, windows Supports all available fonts & characters.
• Wireless Mouse to operate Touch Screen Directly without PC at a distance of 1-2 mtrs.
• Repeatability :± 1%,Fat Measurement range: 0.1 to 100% fat/oil
• Extraction time Taken:40-60 Minutes depending upon the sample
• Auto-sequencing time/temperature domain of 100 programs and 12 sequencing steps
• Temperature Controller Range: Ambient to 300°C,Temperature Accuracy/ Precision:±0.5° C
• 3 Ports in the motherboard one for PC connectivity 2nd port for direct connection to wireless Remote Mouse & 3rd port to connect external wireless keyboard.
• Separate isolated Temperature Controller in a control tower for digestion heat zone and acid reaction chamber for safe operation, separate access door for main unit with separate access door for main unit & electronics control tower unit
• Electrical Requirement: 230v/50Hz. AC Mains.
• Inbuilt software performs Live graphical representation with Time/ Temp Curve Directly in touch screen display
• Auto Extraction Phases like boiling, Condensation, rinsing, solvent recovery and Pre drying.
• Microprocessor Programmable Inbuilt Air pump for easy evaporation of solvent with the help of SS Manifold
• Microprocessor Programmable Automatic collection of recovered Solvent with optical sensor to prevent overflowing of solvent
• Versatile to handle different sizes of thimble, Extraction beakers & Nitro Cellulose thimble Size : (25, 33 mm dia X 80mm L) or more
• Inbuilt Machine management Software enables multi user login feature with admin password for minimum 5-10 users
• Unique driver software to link Touch screen controller to Data processing system
• Entire display screen of Controller with appear wirelessly in the PC/Laptop, monitor & Control From Work Table distance of 5-10 feet.
• Memory Backup During Power Failure Microprocessor holds previous programmed setting in memory & on Power resumption starts from last set value.

Safety Features

• Auto Over Protection, Auto sensor Break Protection, Over temperature. Cut off,
• Protection door safety Switch, Auto Deactivation etc., Damage Probe Detection.
• Run alert, System Intimation Alarm For every sequence Execution for user attention
• Auto error Indication and Sensor break detection
